Funny Cake Machine 2000 pcs

Final product:

Funny Sponge Cake with filling

Weight 12-15 gram

SPECIFICATION:

Semi-automatic Funny Cake line 2000

Type:  Funny Cake 2000

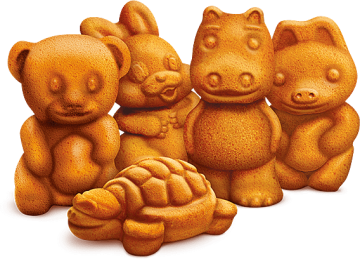

Baking molds: 26 molds, 5 characters: bear, squirrel, rabbit, turtle, hippo

Capacity: 2000 pieces/hour,  30 kg/hour

Baking time: 3 min

Product weight: 12 – 15 gram

Filling weight: 5 gram

Energy: Electricity, 220V/380V X 3Ø 0.24 kW

Dimensions:  1100 x 1440 x 3650 (w x h x l)

Funny Cake line is  a semi-automatic production systems with capacities up to 2000 pieces per hour. Funny Cake line is designed for the dough and filling depositing process in to the molds necessary for producing sponge Funny Cakes.

-the machine serves for dosing of dough and filling into the moulds, forming and baking of sponge dough products

-dough : sponge dough

-filling :  termostable

-construction: stainless steel

-two hoppers for  dough – the machine allows to produce two colour products

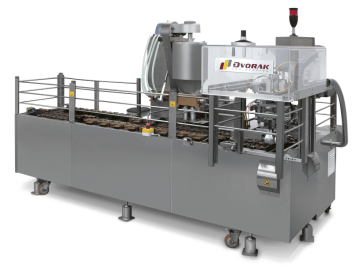

Funny Cake Machine 1200 pcs

Final product:

Funny Sponge Cake with filling

Weight 30 gram

SPECIFICATION:

Type:  Funny Cake 1200

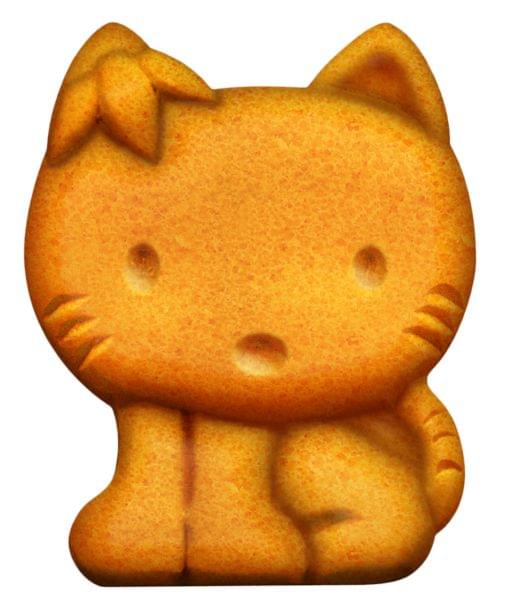

Baking moulds: 32 moulds, 1 character,  Cat

Capacity: 1200 pieces/hour, 36 kg/hour

Product weight: 30 gram

Baking time: 5 min

Energy: Natural gas, consumption: 0,7-1,7 m3

Electricity connection: 230/400V, 3 phases, 50/60 Hz

Dimensions:  1660 x 1483 x 3019 (w x h x l)

Funny Cake line is  a semi-automatic production systems with capacities up to 1200 pieces per hour. Funny Cake line is designed for the dough and filling depositing process in to the molds necessary for producing sponge Funny Cakes.

Semi-automatic Funny Cake line 1200

-the machine serves for dosing of dough and filling into the moulds, forming and baking of sponge dough products

-dough: sponge dough

-filling : termostable

-high workmanship quality

-the machine is equipped with automatic greasing of the baking moulds with easy maintenance

-machine equipped with extraction hood placed above baking area

Show Room Machine for Sale

Packaging

Horizontal packaging machine GSP45

- the machine serves for packaging of the products made by DFL-32-1200-G machine

Sizes , h x w x l:  1800 x 800 x 3350 mm

Voltage: 230 Vac

Frequency: 50Hz

Air pressure: 6bar

Capacity: Up to 60 bags/minute

Installed input: 2,5 kW

Bag length: 60-630 mm

Total weight: 460 kg


Cooling

Conveyor:   Straight, belt conveyor

Conveyor length:  6050 mm

Coneyor height:  800-900 mm

Belt width:   570 mm

Cooling length:   4500 mm

Width of the tunnel:   1200 mm

Height of the tunnel:   1900-2000mm

Belt:    Ammeraal Beltech

Electricity:   3 N PE, 50 Hz, 400/230 V, TN-S

Input:   5,5 kVA

Protection:   IP 42

Shortest cooling time:   40 seconds

Longest cooling time:   11 minutes

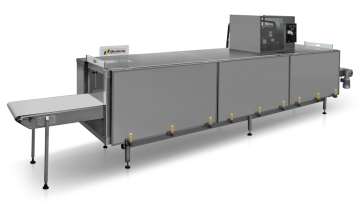

Cooling tunnel CHTD1

-the tunnel serves for cooling of the finished products before packaging


Packaging

Vertical packaging machine HBV5A

incl. accessories (infeed conveyor and short outfeed conveyor for packed products)

- the machine serves for packaging of the products produced by Funny Cake 2000 machine into bags, e.g. 5 pieces per bag

Sizes (without dosing equipment), h x w x l:  1700 x 910 x1370 mm

Weight (without dosing equipment):  350 kg

Maximal width of the packaging material:  480mm

Maximal width of the bag:  300mm

Capacity (depends on the packaging material):  up to 40 strokes/min.

Installed input:   2,5kVA

Electrical connection:   3N+PE 50 Hz 230/400V/TN-S

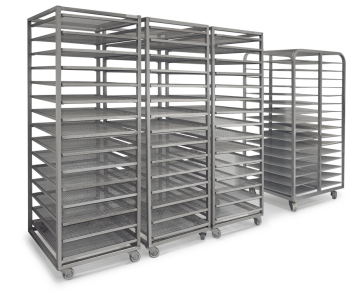

Trolleys, 3 pieces

-decks amount:              15

-sizes (h x l x w):             192 x 73 x 67 cm


Dosing and transporting of dough

Depositor

  • output                                                    max. 35 doses/min
  • mass of dose                                       10-1300 ml
  • precision of dose                                 1%
  • hopper capacity                                   60 liters
  • air consumption under 0,6 MPa        max. 40 liters/min
  • weight:                                                   65 kg
  • noise level                                             70 dB
  • dimensions                                           888 x 2200 x 1980 mm
  • runner stroke                                        150 mm

Movie from the process:
